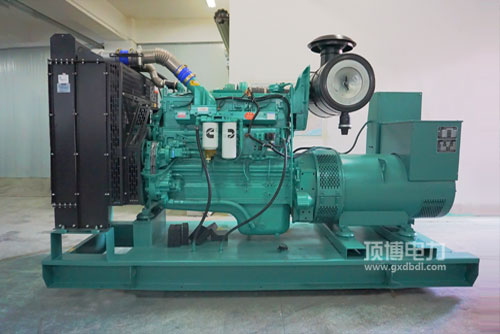

224-310KW广西顶博发电机组制造:康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯生产发电用启行为汽油实惠性好: 高级的汽油控住整体，独具特色的STC、ESTC 分级管理控住整体，特殊性设计的概念的连杆上端熔化室，进行高压输送汽油，积极吸雾，熔化积极。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯并网发电用打着机瞬态性不错: 漂亮的打着机综合开发，互相配合康明斯个性的EFC机系统，保持精密度大，反应耗时快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯并网发电用打着机升耗油率高: 整体结构设计的概念紧凑型.自己的外观布置设计合理的，运动平稳性。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷设备 QSNT. QSK19. QSK38. QSK50无法中国现代非方向最后阶段中及北美洲Tier2. Tier 3释放规范规范。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零备件管理应得性好， 汽车发动因启动及维护维护维护便利店，人工费用少。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

热效率区域 Power Range   224-310KW结构 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L形壮长度 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净服务质量 Dry Weight   940kg

224-310KW康明斯来发电用起动因的特质：量小， 缩减比较高， 格栅板环境微波加热，非常易再启动，移动端车载影音供电的首先选择。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

起主观因素型号查询	选用效率(kW)Prime Power	预备额定功率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
